Specifications

PRICING

Price	Standard
Price - MSRP	18998
Price - Currency	US Dollars
Price - Warranty (Months)	24
Price - MSRP + Destination	18998
Price - Warranty (Condition)	Limited

ENGINE

Engine	Standard
Engine - Engine Type	Horizontal In-line
Engine - Cylinders	4
Engine - Engine Stroke	4-Stroke
Engine - Horsepower (bhp)	158
Engine - Horsepower (kW)	116.5
Engine - Horsepower RPM	11900
Engine - Torque (Ft Lbs)	73.8
Engine - Torque (Nm)	100
Engine - Torque RPM	10100
Engine - Cooling	Liquid / Oil
Engine - Valves	16
Engine - Valves Per Cylinder	4
Engine - Valve Configuration	DOHC
Engine - Bore (mm)	79
Engine - Bore (in)	3.1
Engine - Stroke (mm)	55
Engine - Stroke (in)	2.2
Engine - Displacement (cc)	1078
Engine - Displacement (ci)	65.8
Engine - Compression Ratio	13:1
Engine - Starter	Electric
Engine - Fuel Type	Gas
Carburetion	Standard
Carburetion - Carburetion Brand	Mikuni
Carburetion - Fuel Injector	Yes
Carburetion - Fuel Injector Size (mm)	46
Carburetion - Carburetor	No
Carburetion - Carburetion Type	Fuel Injected

TRANSMISSION

Transmission	Standard
Transmission - Transmission Type	Manual
Transmission - Number Of Speeds	6
Transmission - Primary Drive (Rear Wheel)	Chain
Transmission - Gear Ratio (1)	2.92
Transmission - Gear Ratio (2)	2.13
Transmission - Gear Ratio (3)	1.78
Transmission - Gear Ratio (4)	1.5
Transmission - Gear Ratio (5)	1.32
Transmission - Gear Ratio (6)	1.21
Transmission - Reverse	No
Transmission - Final Drive Ratio	2.87

TECHNICAL SPECIFICATIONS

Dimensions	Standard
Dimensions - Length (in)	82.7
Dimensions - Length (mm)	2100
Dimensions - Width (in)	30.7
Dimensions - Width (mm)	780
Dimensions - Wheelbase (in)	56.6
Dimensions - Wheelbase (mm)	1438
Dimensions - Ground Clearance (in)	5.91
Dimensions - Ground Clearance (mm)	150
Dimensions - Length (ft)	6.89
Dimensions - Length (ft/ft)	6
Dimensions - Length (ft/in)	10.7
Weight	Standard
Weight - Dry Weight (lbs)	403.5
Weight - Dry Weight (kg)	183
Capacities	Standard
Capacities - Fuel Capacity (gal)	6.1
Capacities - Fuel Capacity (l)	23
Performance	Standard
Performance - Engine Displacement to Weight (cc)	2.67

EXTERIOR

Construction	Standard
Construction - Frame	Chromium Molybdenum
Construction - Body Material	Thermoplastic
Hand Grips	Standard
Foot Pegs	Standard
Foot Pegs - Foot Peg Location	Driver and Passenger
Exterior Guards	Standard
Exterior Guards - Chain Guard	Yes
Exterior Guards - Chassis Protectors	No
Exterior Guards - Drive Shaft Guard	No
Exterior Guards - Engine Case Guard	No
Exterior Guards - Fork Guards	Yes
Exterior Guards - Saddle Bag Guard	No
Exterior Guards - Tank Guard	No
Exterior Guards - Belt Guard	No
Exterior Guards - Hand Guards	No
Exterior Guards - Brush Guard	No
Exterior Guards - Heel Guards	Yes
Exterior Guards - Exhaust Guard	Yes
Exterior Guards - Light Guard	No
Exterior Covers	Standard
Exterior Covers - Radiator Cover	Yes
Exterior Covers - Side Cover	Yes
Exterior Covers - Fuel Tank Cover	No
Front Fender	Standard
Rear Fender	Standard
Stand	Standard
Stand - Stand Type	Kick

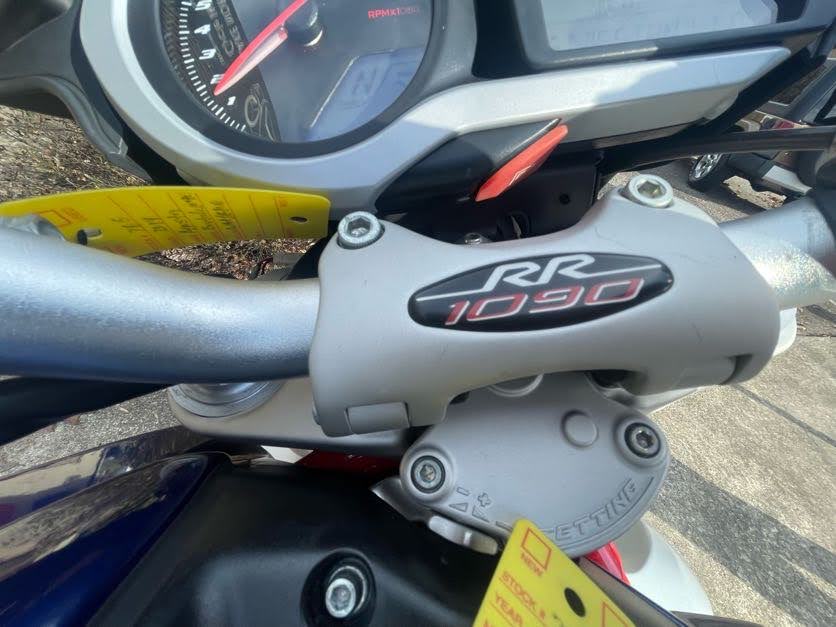

Handlebars	Standard

SUSPENSION

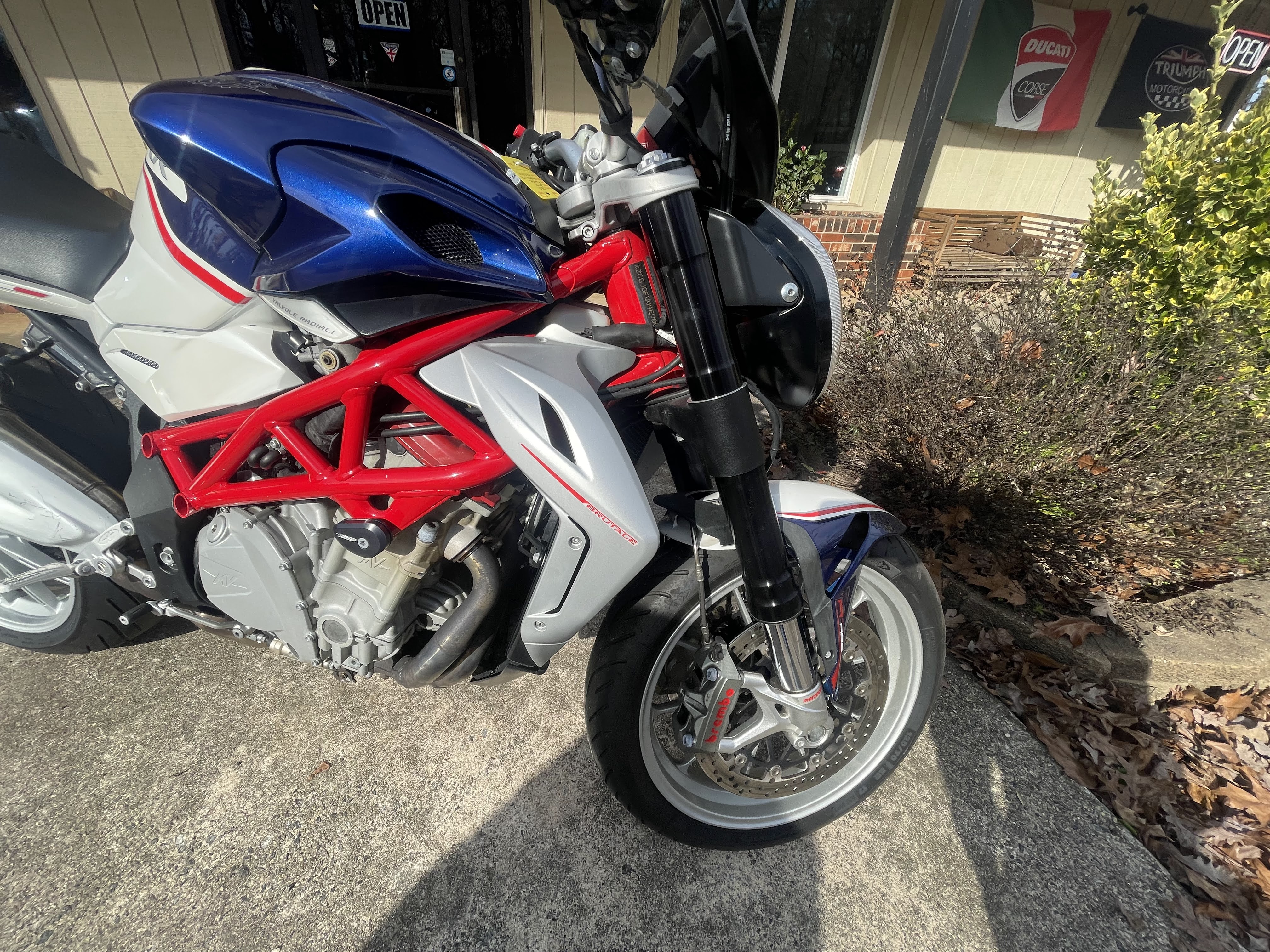

Front Suspension	Standard
Front Suspension - Front Suspension Type	Inverted Fork
Front Suspension - Front Suspension Size (in)	1.97
Front Suspension - Front Suspension Size (mm)	50
Front Suspension - Front Travel (in)	5.1
Front Suspension - Front Travel (mm)	130
Front Suspension - Front Adjustable Fork Pre-Load	Yes
Front Suspension - Front Adjustable Rebound Damping	Yes
Front Suspension - Front Central Suspension Strut	No
Front Suspension - Front Suspension Brand Name	Marzocchi
Front Suspension - Steering Damper	Yes

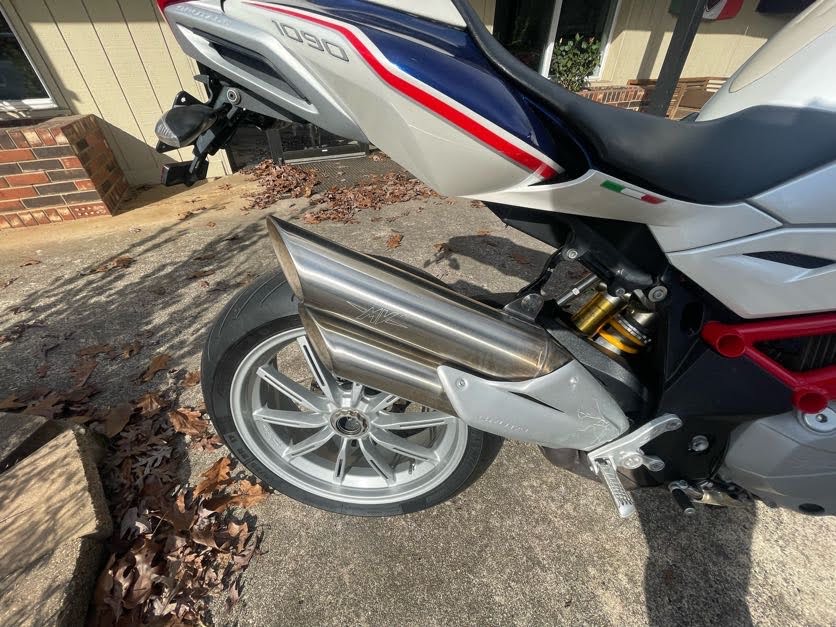

Rear Suspension	Standard
Rear Suspension - Rear Suspension Type	Single Sided Swing Arm
Rear Suspension - Rear Travel (in)	4.7
Rear Suspension - Rear Travel (mm)	120
Rear Suspension - Rear Adjustable Shock / Spring Pre-Load	Yes
Rear Suspension - Rear Adjustable Rebound Damping	Yes
Rear Suspension - Number Rear Shock Absorbers	1
Rear Suspension - Rear Suspension Brand Name	Sachs
Rear Suspension - Rear Suspension Material	Aluminum
Rear Suspension - Air Adjustable	No

WHEELS & TIRES

Wheels	Standard
Wheels - Wheels Composition	Forged Aluminum
Wheels - Tube / Tubeless	Tubeless
Wheels - Front Wheel Width (in)	3.5
Wheels - Rear Wheel Width (in)	6
Wheels - Chromed	No
Tires	Standard
Tires - Front Tire Width	120
Tires - Front Tire Aspect Ratio	70
Tires - Front Tire Speed Rating	Z
Tires - Front Wheel Diameter	17
Tires - Rear Tire Width	190
Tires - Rear Tire Aspect Ratio	55
Tires - Rear Tire Speed Rating	Z
Tires - Rear Wheel Diameter	17
Tires - Front Tire (Full Spec)	120/70 ZR17
Tires - Rear Tire (Full Spec)	190/55 ZR17

BRAKES

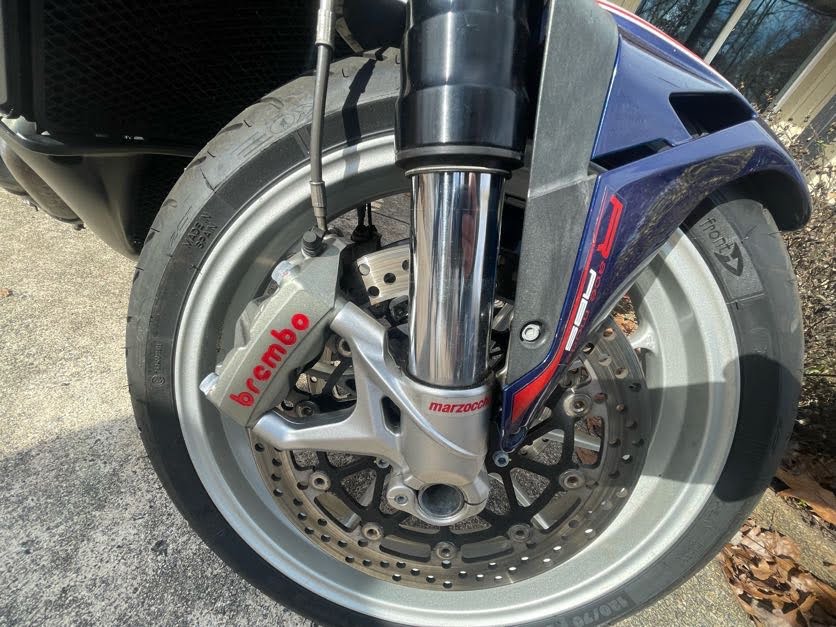

Brakes	Standard
Brakes - Brake Brand Name	Brembo®
Brakes - Front Brake Type	Dual Hydraulic Disc
Brakes - Front Brake Diameter (in)	12.6
Brakes - Front Brake Diameter (mm)	320
Brakes - Rear Brake Type	Hydraulic Disc
Brakes - Rear Brake Diameter (in)	8.3
Brakes - Rear Brake Diameter (mm)	210
Anti-Lock Brakes	Standard
Linked Brake System Front to Rear	Standard

SEATS

Seat	Standard
Seat - Seat Type	One-Piece
Seat - Adjustable	No
Seat - Seat Material	Leather
Seat - Seat Location	Driver and Passenger
Seat - Folding	No
Seat Specifications	Standard
Seat Specifications - Seat Height (in)	32.7
Seat Specifications - Seat Height (mm)	830
Seat Specifications - Number Of Seats	2
Grab Rail or Strap	Standard

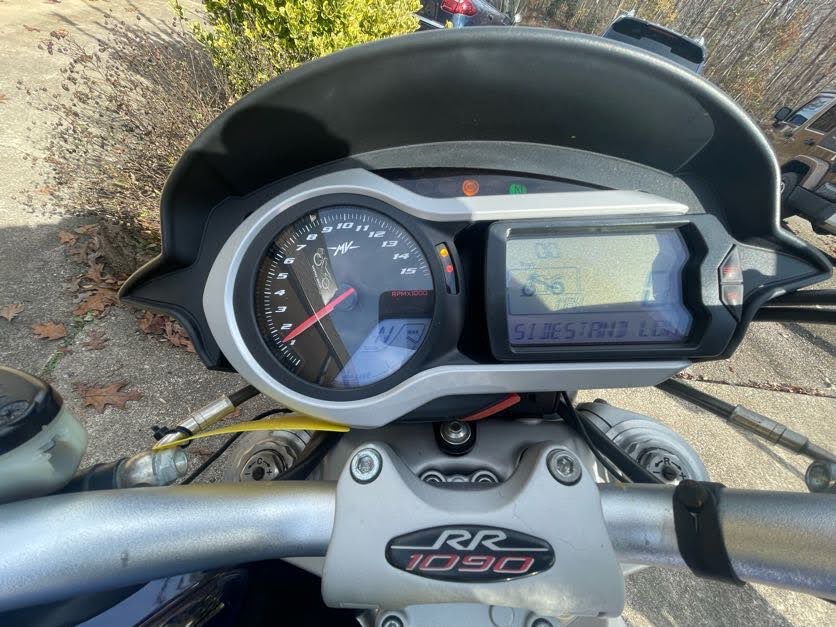

INSTRUMENTATION

Digital Instrumentation	Standard
Tachometer	Standard
Trip Odometer	Standard
Trip Computer	Standard
Lap Timer	Standard
Speedometer	Standard
Temperature Warning	Standard
Temperature Warning - Temperature Warning Type	Gauge
Fuel Level Warning	Standard
Fuel Level Warning - Fuel Level Warning Type	Gauge

LIGHTS

Halogen Headlight(s)	Standard
Headlight(s)	Standard
Headlight(s) - Type	Halogen

GLASS

Rearview Mirrors

Standard

CONVENIENCE

Engine Immobilizer	Standard
Adjustable Levers	Standard

PAINT & FINISH

Paint

Standard

STEERING

Steering	Standard
Steering - Steering Control	Handlebar

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
